CODiAQ
Remote direct-fire and ballistic breaching capability
Controller-Operated Direct-Action Quadruped (CODiAQ) with state-of-the-art hybrid technologies integrated into a single, small tactical team organic system, was developed to provide the warfighter with a force multiplying, weaponized device that can operate from a safe stand-off in a direct action role against hardened targets and enemy personnel when conducting Irregular Warfare Operations in complex urban terrain.
A field ready, fully mission capable, ruggedized quadruped to ensure small tactical units increase lethality and enhance their organic capability to engage enemy positions accurately and effectively.
Modular Payloads

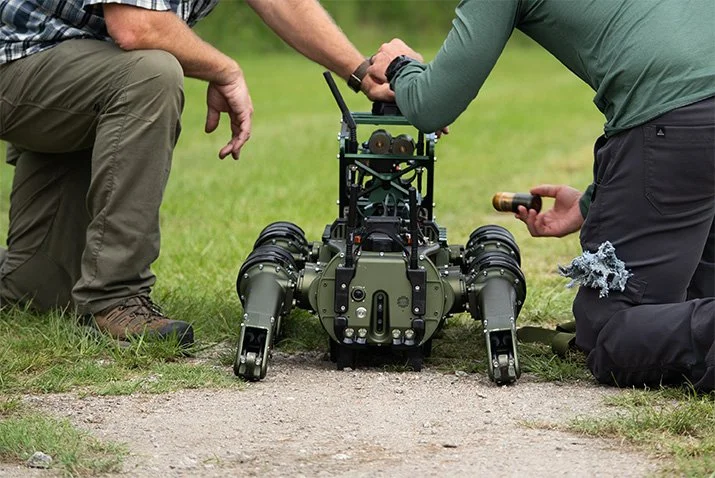

Ability to rapidly swap between HAVOC 40mm grenade launcher or CHAOS 12ga shotgun.
AiTR and Tracking
AI Target Recognition and Tracking onboard to support rapid engagement and lawful targeting

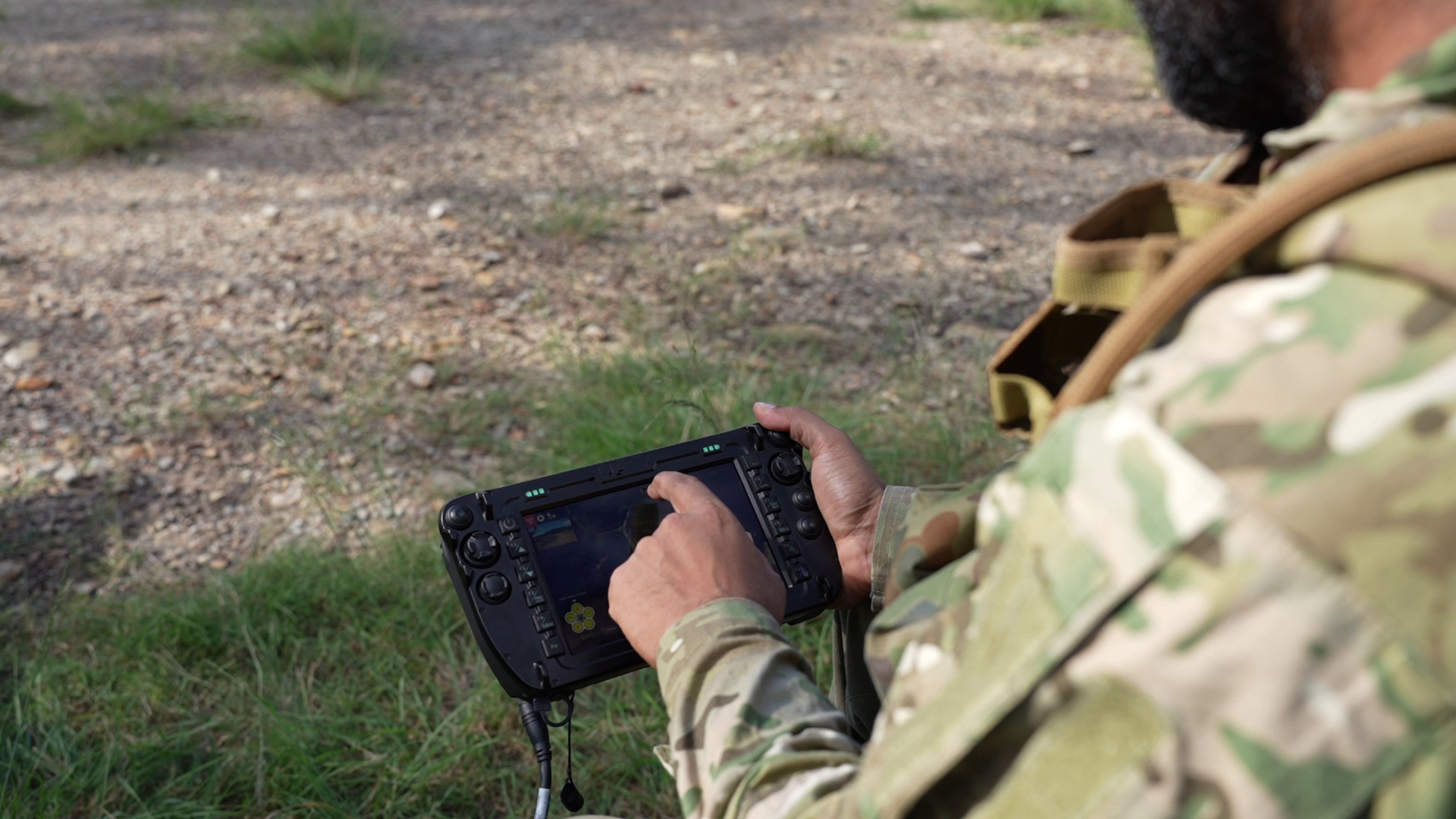

Single Operator
Utilises a single GCS and data link, requiring minimal training.
Ruggedized Construction
Roll cage for rollover protection.
All-weather Operations
IP67 rating for operations in all weather conditions.
Technical Specifications
| Mass (CODiAQ with loaded HAVOC) | 66 kg / 145 lbs |
| Into Action Time | 10 min assembly / 90 sec weapon swap / 90 sec reload |
| Runtime | 2 hour 15 minutes |
|
Sensor Package |
EO / IR Optical Sensors |
| Data links | Silvus StreamCaster 4200 |
| Ground Control Station | UXV Technologies SRoC |
| Environmentally Tested | MIL-STD-810H and IP67 |
| ATAK | Compatible |
| NDAA | Compliant |
Further specifications available on request.
Expression of Interest
Please get in touch if you would like to learn more about the CODiAQ.
