Reimagined weapons, specifically designed for UxV applications
Conventional weapons systems are designed for human-held operation. Skyborne’s UxV Weapon Payloads are integrated onto unmanned vehicles (UxV), like the Cerberus MI UAV and other UxV systems (UAV, UGV, Q-UGV), to provide a remote weapon system capability with standard ammunition from robotic agents.
Designed and assembled in-house at Skyborne, these UxV weapon payloads allow electronic firing, minimise weight and allows operators to select rounds remotely.

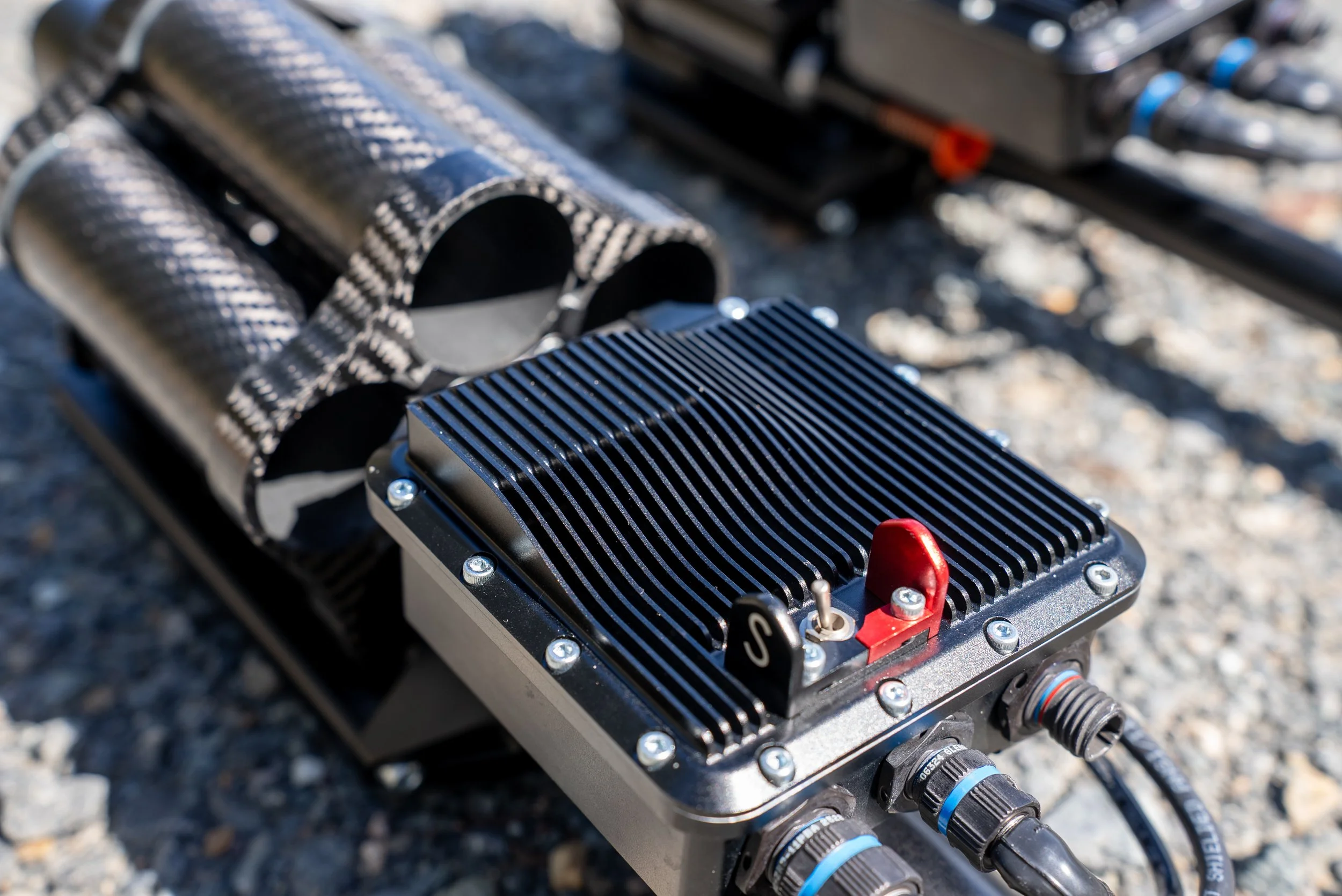

Skyborne Fire Controller
Firing pin is misaligned with round until armed, plus Electronic Safe, Arm, and Fire and software protections
Simple UxV Integration
Supply unregulated power and RS422 communications

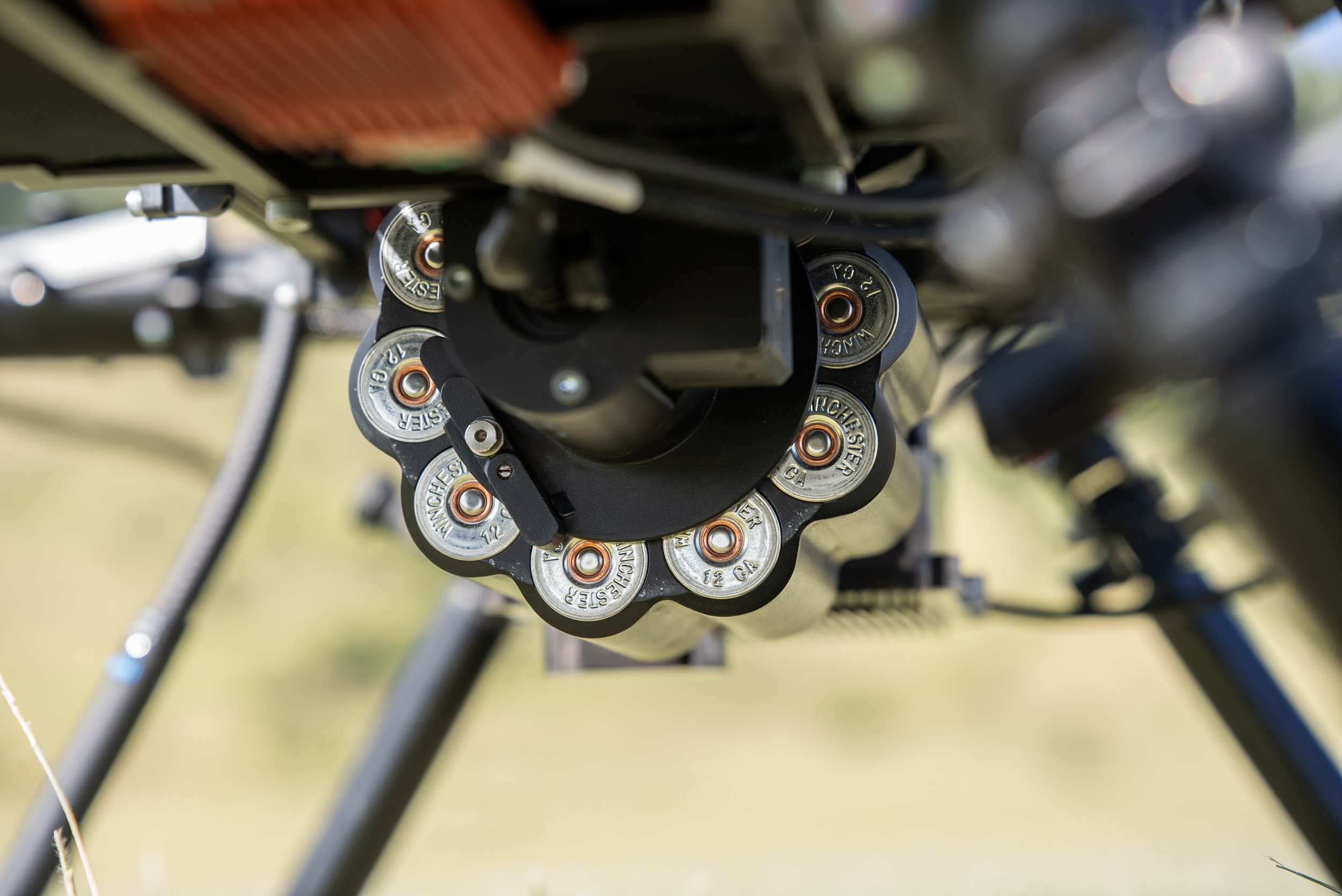

Servo operated chambers
For round selection during operation
Versatile round loading
Load different standard ammunition types for the same mission (lethal or non-lethal)
Technical Specifications
 CHAOS |
 HAVOC |
|
| Weight, unloaded | 2.17kg | 1.6kg Carbon Chambers / 2.3kg Aluminium Chambers |
| Dimensions (Length x Width x Height) | 501 x 113 x 127 mm | 482 x 131 x 136 mm |
| Ammunition Type | 10 rounds - 12 gauge | 5 rounds - 40mm (up to 134mm length) |
| Ingress Protection (IP) Rating | IP67 | |
|
Skyborne Fire Controller (SFC) Weight Dimensions Supply Voltage |
0.9kg Aluminium / 0.58kg Nylon 135 x 135 x 52mm 15V min - 80V max |
|
Expression of Interest
If you would like to learn more about the UxV Weapons, please get in touch.
